Pillow block ball bearing units

Housing Ball Bearing Unit:
Housed bearings allow easy and efficient self-centering installation errors. It can be easily installed on various industrial shafts and is especially useful on equipment frames.
Bearing type: UC, UK, Sb,
Inner diameter range: 12mm-90mm,

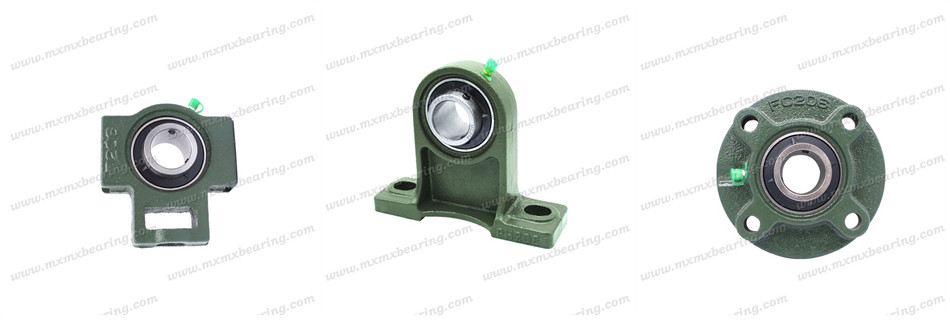

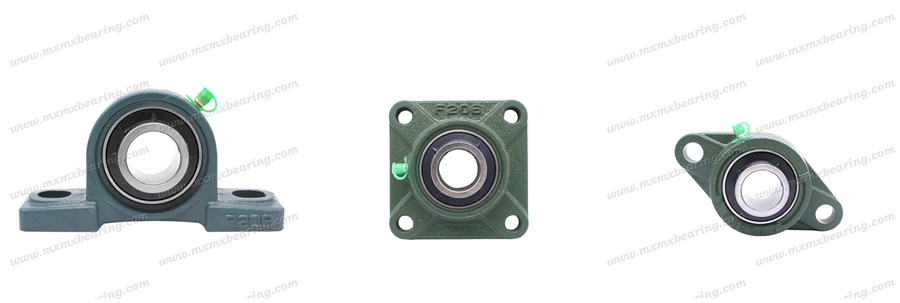

Type of bearing seat: P seat, f seat, t seat, FL seat, FC seat, pH seat, PA seat, FA seat, FB seat, etc


The bearing with seat can perform simple and effective automatic centering on the installation error. It can be easily installed on various industrial shafts and is particularly useful on the equipment frame. The range of bearing seat products is very wide. The types include vertical seat, various flanged seat, keyway seat, circular seat, etc. the materials used include gray cast iron seat, ductile iron seat, steel plate stamping seat, stainless steel seat and plastic seat. What are the characteristics and advantages of the outer spherical bearing with seat?

1、 The outer spherical bearing with seat is composed of an outer spherical bearing and a bearing seat. It is unnecessary to design a bearing box in use. It is small in size and simple in structure. It can be directly installed on the design part of the main machine with bolts, which is convenient to use.

2、 Simple and practical: the bearing pedestal is of integral structure, with large bearing capacity and good rigidity. The bearing and the bearing pedestal can be interchanged, that is, different types of bearings can be installed on the same bearing pedestal; Similarly, various types of bearing blocks can be selected for the same type of bearing.

3、 Automatic adjustment: the outer spherical bearing with seat can work under the condition of two bearing seats with different axes, and the maximum automatic adjustment angle can reach 2 °.

4、 Accessory auxiliary: the inner diameter of the outer spherical bearing with seat adopts "+" tolerance to form a clearance fit with the shaft. The bearing is fixed on the shaft through some jackscrews, eccentric sleeves or tightening sleeves on the inner ring, which reduces the accuracy requirements of the shaft. It is extremely convenient to install or replace the bearing.

5、 Small requirements for working environment: the outer spherical bearing with seat is generally pre filled with lubricating grease and adopts double-layer or three lip sealing. It is suitable for use in places with more dust, muddy water and corrosive media, which is conducive to the work of the main engine.

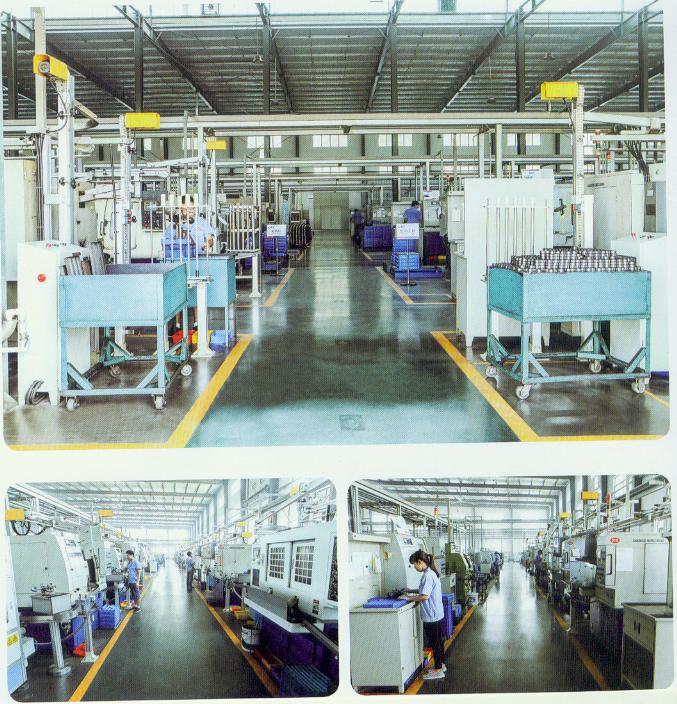

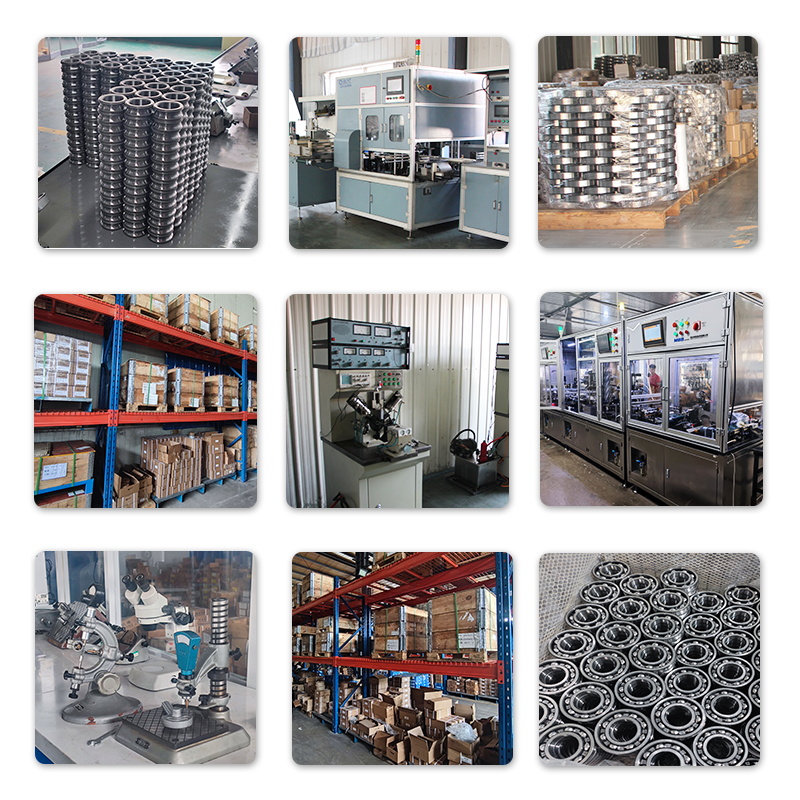

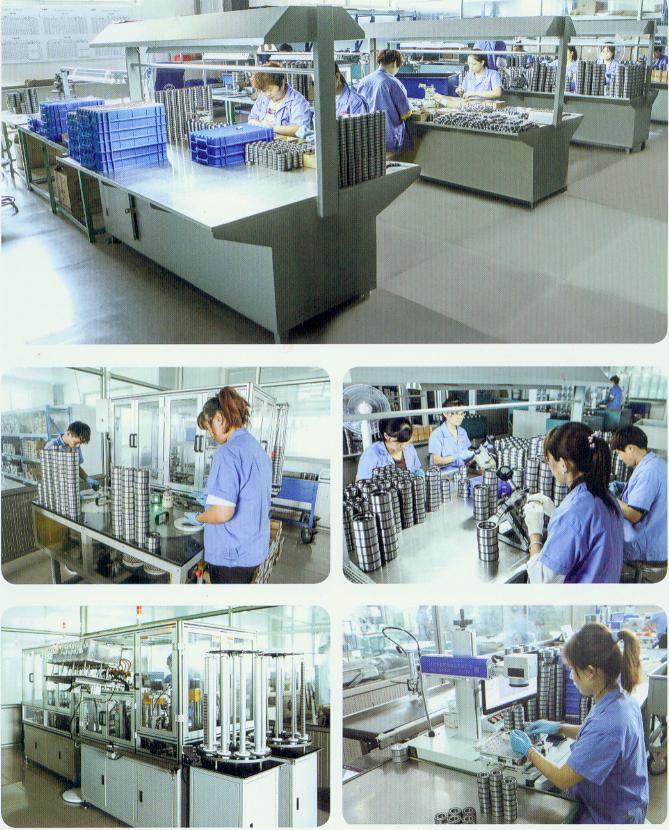

wuxi xinhaorui Bearing specialized in research manufacturing and exporting roller bearings and ball bearings, Ball bearing linear guide All metal High temperature resistance linear guide We could also provide OEM service according to our customers' requirements. Our well-equipped facilities, strict quality control throughout all stages of production, as well as the good after-sales service have enabled us to provide our customers with high quality products.



Specification and model:

UC201 UCP201 UCF201 UCFL201 UCT201 UCFC201 UCPH201

UC202 UCP202 UCF202 UCFL202 UCT202 UCFC202 UCPH202

UC203 UCP203 UCF203 UCFL203 UCT203 UCFC203 UCPH203

UC204 UCP204 UCF204 UCFL204 UCT204 UCFC204 UCPH204

UC205 UCP205 UCF205 UCFL205 UCT205 UCFC205 UCPH205

UC206 UCP206 UCF206 UCFL206 UCT206 UCFC206 UCPH206

UC207 UCP207 UCF207 UCFL207 UCT207 UCFC207 UCPH207

UC208 UCP208 UCF208 UCFL208 UCT208 UCFC208 UCPH208

UC209 UCP209 UCF209 UCFL209 UCT209 UCFC209 UCPH209

UC210 UCP210 UCF210 UCFL210 UCT210 UCFC210 UCPH210

UC211 UCP211 UCF211 UCFL211 UCT211 UCFC211 UCPH211

UC212 UCP212 UCF212 UCFL212 UCT212 UCFC212 UCPH212

UC213 UCP213 UCF213 UCFL213 UCT213 UCFC213 UCPH213

UC214 UCP214 UCF214 UCFL214 UCT214 UCFC214 UCPH214

UC215 UCP215 UCF215 UCFL215 UCT215 UCFC215 UCPH215

UC216 UCP216 UCF216 UCFL216 UCT216 UCFC216 UCPH216

UC217 UCP217 UCF217 UCFL217 UCT217 UCFC217 UCPH217

UC218 UCP218 UCF218 UCFL218 UCT218 UCFC218 UCPH218

UC305 UCP305 UCF305 UCFL305 UCT305

UC306 UCP306 UCF306 UCFL306 UCT306

UC307 UCP307 UCF307 UCFL307 UCT307

UC308 UCP308 UCF308 UCFL308 UCT308

UC309 UCP309 UCF309 UCFL309 UCT309

UC310 UCP310 UCF310 UCFL310 UCT310

UC311 UCP311 UCF311 UCFL311 UCT311

UC312 UCP312 UCF312 UCFL312 UCT312

UC313 UCP313 UCF313 UCFL313 UCT313

UC314 UCP314 UCF314 UCFL314 UCT314

UC315 UCP315 UCF315 UCFL315 UCT315

UC316 UCP316 UCF316 UCFL316 UCT316







Q1: Are you a trading company or a manufacturer?

A1: We are a manufacturer.

Q2: How long is your delivery time?

A2: Generally it is 15-20 days, if the goods are in stock, it is 3-7 days, if the goods are not in stock, it depends on the quantity.

Q3: Do you provide samples? Is it free or extra?

A3: Yes, we can provide samples for free, but we don't pay shipping fee.

Q4. How do you control the quality,and what if there is quality problem?

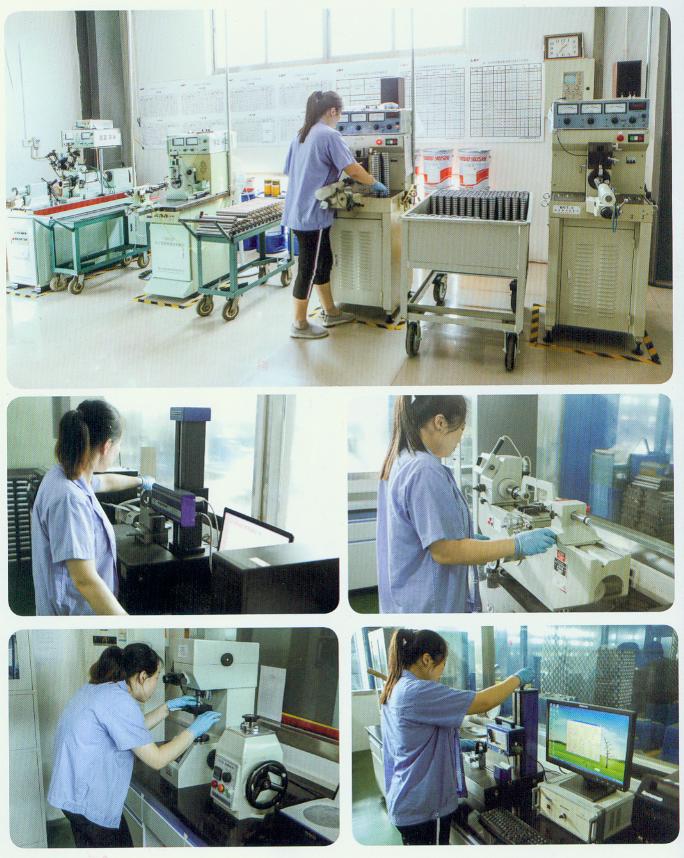

A4: All bearings will be 100% strictly inspected before shipment, including hardness, size, noise, speed, vibration and accuracy. If there is any quality problem, we will replace all faulty products with our shipping cost or refund to you.

Q5:OEM and customized can you accept?

A5: Yes, OEM is accepted, also can be customized for you according to samples or drawings

Q6: What are your shipping conditions.

A6: We can arrange shipping by sea to your nearest seaport or deliver to your doorstep. Air freight is also possible. We can help with all import formalities. It takes about 25-40 days by sea and 3-7 days by air.
