Angular contact ball bearings

Angular contact ball bearings
Material: GCr15,
Type: single row ball bearing, mating bearing, open bearing, sealed bearing
Model: 7000-7032, 7200-7232, 7303-7332, 71900-71940,
Contact Angle: C, AC, B
Precision: p0,p6,p5,p4,p2

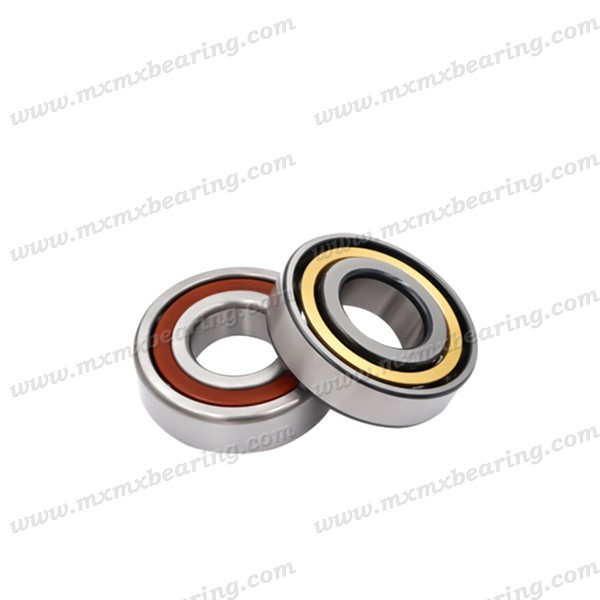

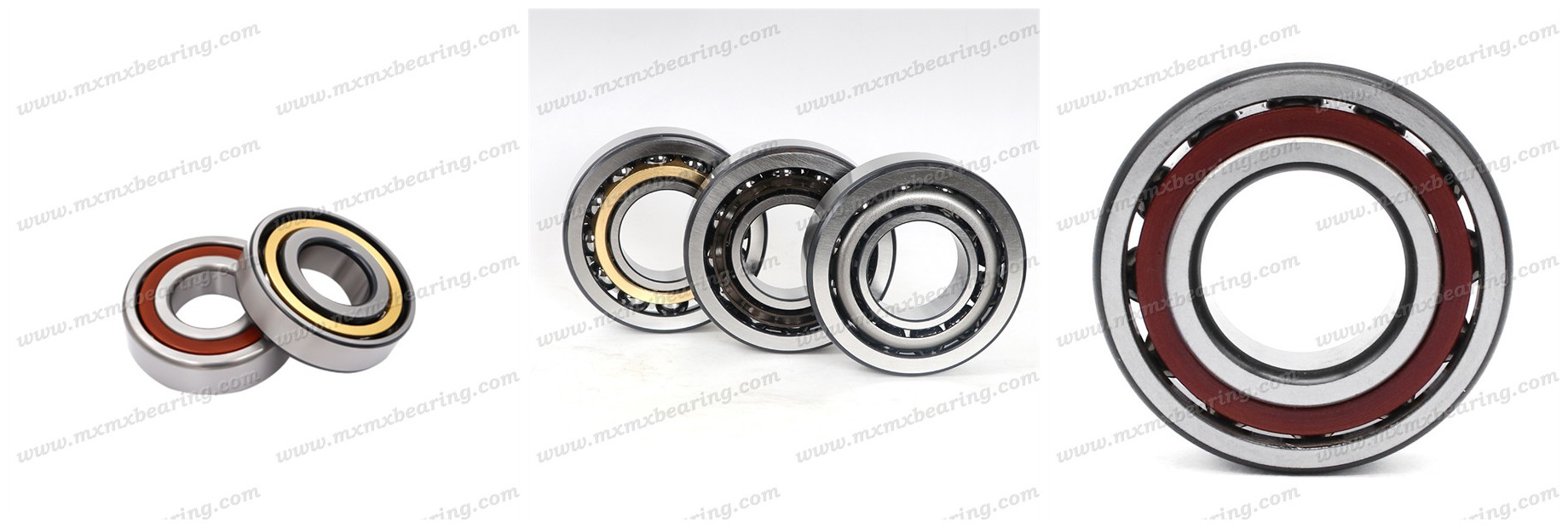

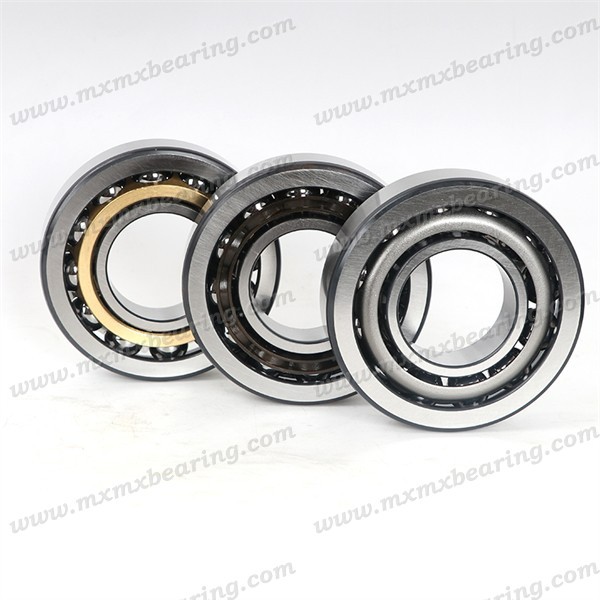

Angular contact ball bearing:

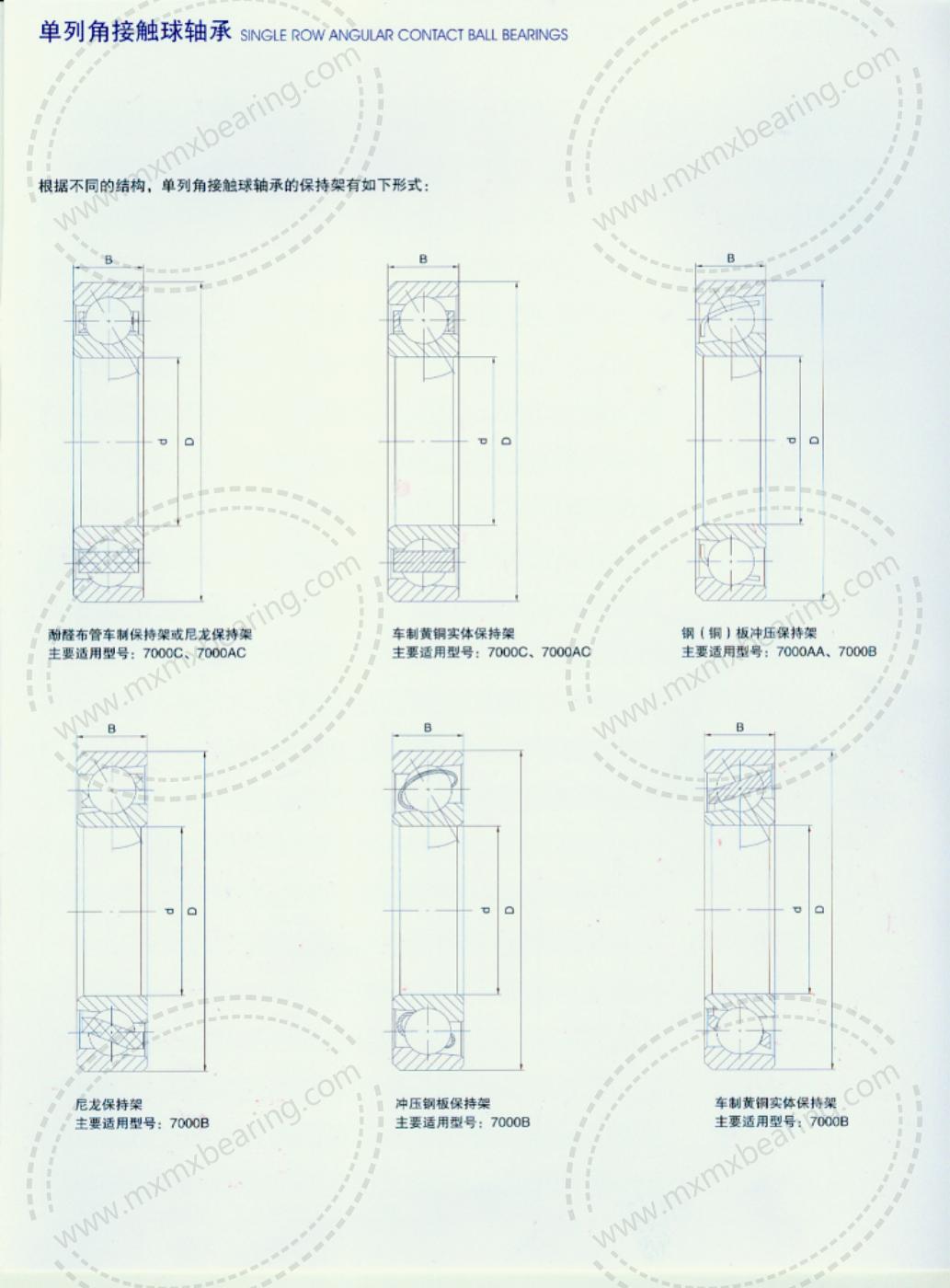

this type of bearing can bear radial and axial loads at the same time. Because it will cause internal axial force when bearing radial loads, it should be installed and used. Its configuration methods include "back-to-back", "face-to-face", "series" and "multi connection", and the rigidity of the main shaft can be improved through preloading. The contact angles of this type of bearing are 15 °, 25 ° and 40 °. The ferrules and rolling elements are made of high-quality electroslag bearing steel. The cage material includes phenolic laminated cloth pipe and bakelite. The tolerance grade includes ordinary grade P6, grade P5, P4 and P2. Therefore, this type of bearing has high rotation accuracy and limit speed, small friction and low temperature rise.

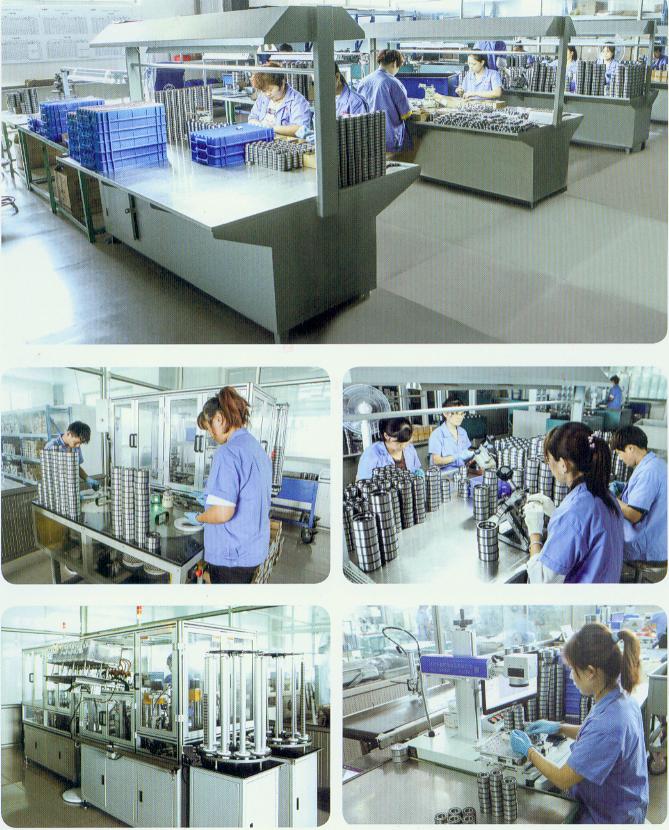

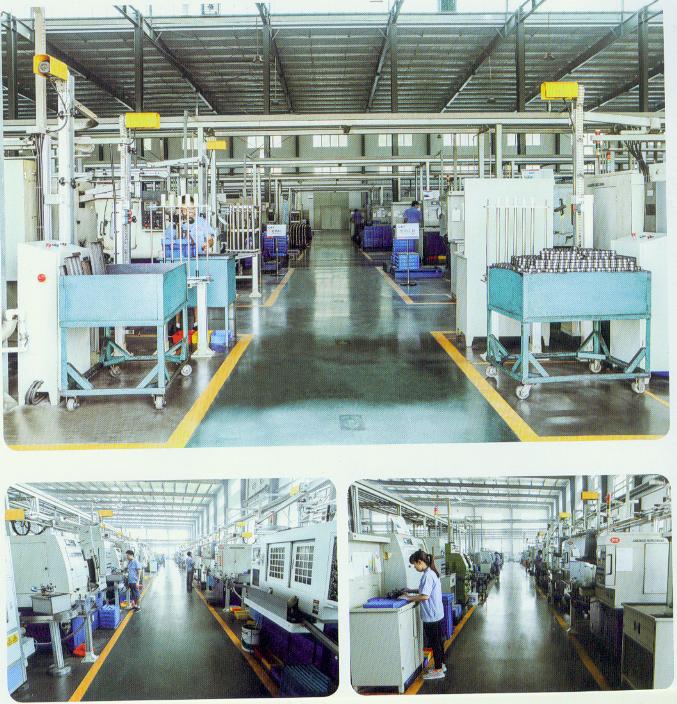

wuxi xinhaorui Bearing specialized in research manufacturing and exporting roller bearings and ball bearings, Ball bearing linear guide All metal High temperature resistance linear guide We could also provide OEM service according to our customers' requirements. Our well-equipped facilities, strict quality control throughout all stages of production, as well as the good after-sales service have enabled us to provide our customers with high quality products.



Specification and model:

inner diameter（mm）： model：

4 724

5 725

6 726

7 727

8 708 728

9 709 729

10 7000 7200 71800 71900

12 7001 7201 71801 71901

15 7002 7202 71802 71902

17 7003 7203 7303 71803 71903

20 7004 7204 7304 71804 71904

25 7005 7205 7305 71805 71905

30 7006 7206 7306 71806 71906

35 7007 7207 7307 71807 71907

40 7008 7208 7308 71808 71908

45 7009 7209 7309 71809 71909

50 7010 7210 7310 71810 71910

55 7011 7211 7311 71811 71911

60 7012 7212 7312 71812 71912

65 7013 7213 7313 71813 71913

70 7014 7214 7314 71814 71914

75 7015 7215 7315 71815 71915

80 7016 7216 7316 71816 71916

85 7017 7217 7317 71817 71917

90 7018 7218 7318 71818 71918

95 7019 7219 7319 71819 71919

100 7020 7220 7320 71820 71920







Q1: Are you a trading company or a manufacturer?

A1: We are a manufacturer.

Q2: How long is your delivery time?

A2: Generally it is 15-20 days, if the goods are in stock, it is 3-7 days, if the goods are not in stock, it depends on the quantity.

Q3: Do you provide samples? Is it free or extra?

A3: Yes, we can provide samples for free, but we don't pay shipping fee.

Q4. How do you control the quality,and what if there is quality problem?

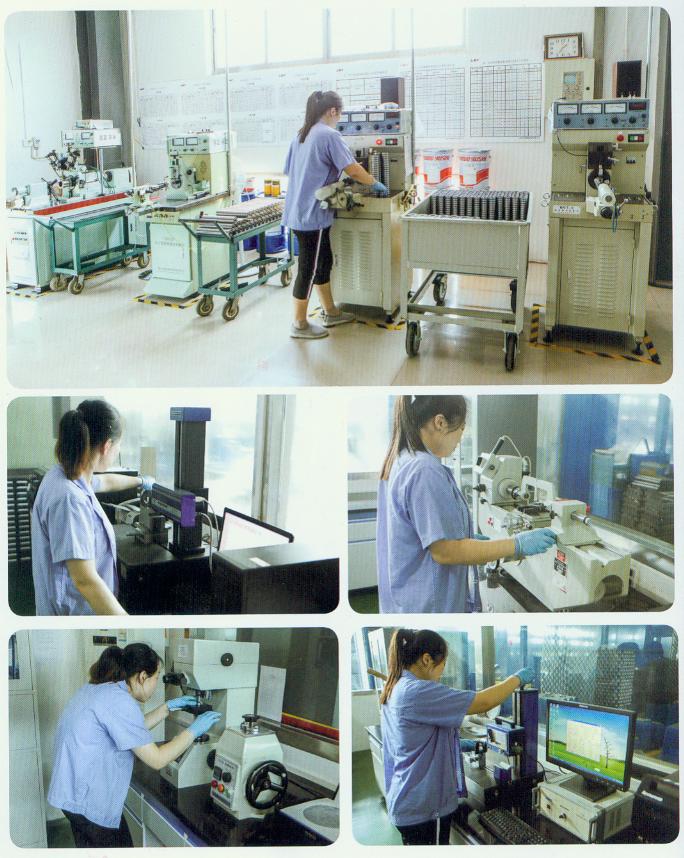

A4: All bearings will be 100% strictly inspected before shipment, including hardness, size, noise, speed, vibration and accuracy. If there is any quality problem, we will replace all faulty products with our shipping cost or refund to you.

Q5:OEM and customized can you accept?

A5: Yes, OEM is accepted, also can be customized for you according to samples or drawings

Q6: What are your shipping conditions.？

A6: We can arrange shipping by sea to your nearest seaport or deliver to your doorstep. Air freight is also possible. We can help with all import formalities. It takes about 25-40 days by sea and 3-7 days by air.
