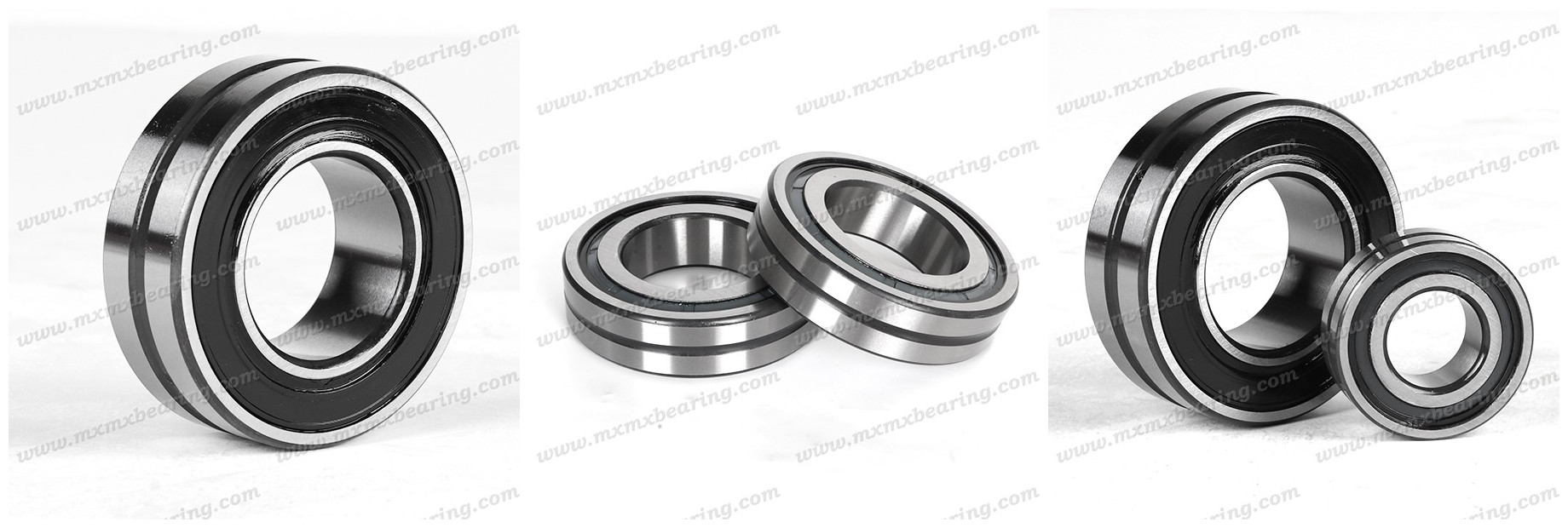

Sealed sphericai roller bearings

Sealed spherical roller bearings:
It is used for some equipment with large radial load and equipment where oil seal cannot be installed on the outside of the bearing that needs to be adjusted.
material: GCr15,
This: Steel Cage,
Production range:
BS2-2205-2CS--BS2-2226-2CS, BS2-2308-2CS--BS2-2320-2CS, SB22204W33SS--SB22228W3SS, SB22308W33SS--SB22320W33, series


Spherical Roller Bearings

1. Large radial load capacity. It is easy to install. It can be directly installed or installed on the cylindrical shaft by using the tightening sleeve and assembly barrel.

2. It can bear certain axial load. The outer race of this type of bearing is spherical and can bear large radial load. Therefore, it has centering performance, is not affected by the misalignment of the shaft and the bearing box or the deformation and deflection of the shaft, and can compensate for the coaxiality error

3. There are two rows of spherical rollers, the outer ring has a common concave spherical raceway, the inner ring has two concave raceways inclined at an angle with the bearing axis, and the curvature center of the outer ring raceway is consistent with the bearing center.

4. In addition to bearing radial load, it can also bear bidirectional axial load and its combined load. The bearing capacity is large, and it also has good anti vibration and impact resistance.

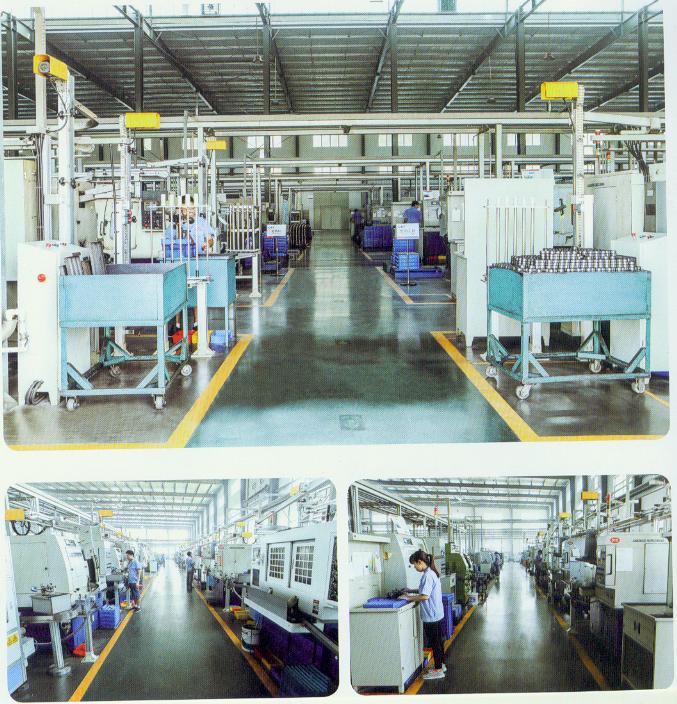

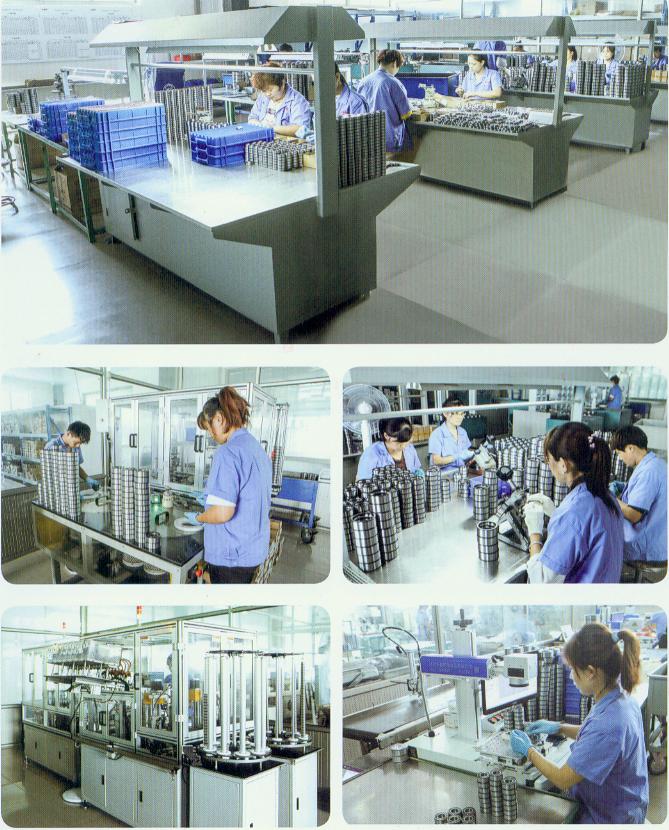

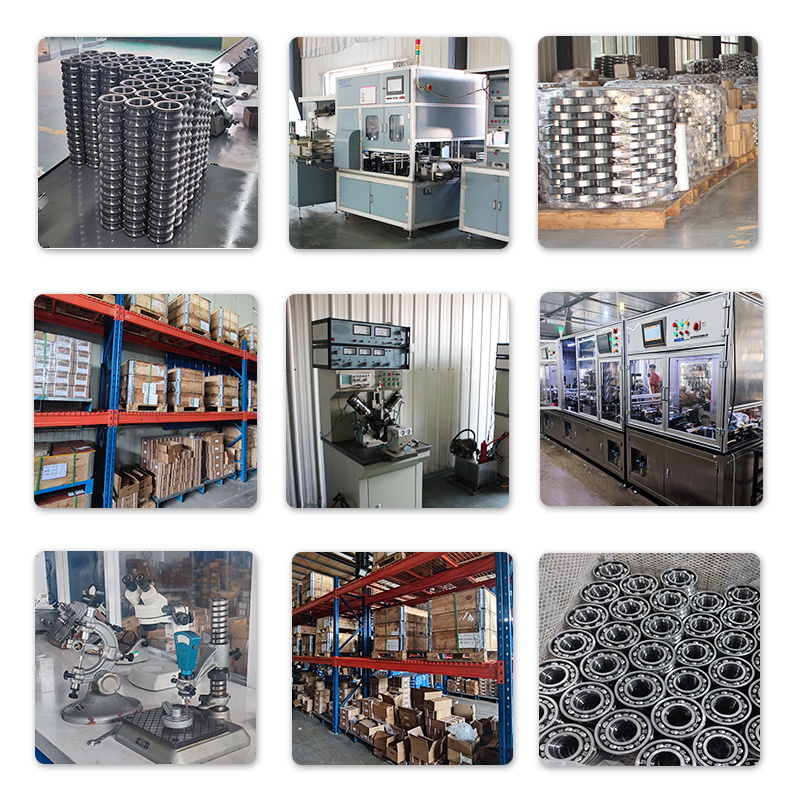

wuxi xinhaorui Bearing specialized in research manufacturing and exporting roller bearings and ball bearings, Ball bearing linear guide All metal High temperature resistance linear guide We could also provide OEM service according to our customers' requirements. Our well-equipped facilities, strict quality control throughout all stages of production, as well as the good after-sales service have enabled us to provide our customers with high quality products



MODEL INTEMAL DIAMETER EXTERNAL DIAMETER HEIGHT

BS2-2205-2CS/VT143 25 52 23

BS2-2206-2CS/VT143 30 62 25

BS2-2207-2CS/VT143 35 72 28

BS2-2208-2CS/VT143 40 80 28

BS2-2209-2CS/VT143 45 85 28

BS2-2210-2CS/VT143 50 90 28

BS2-2211-2CS/VT143 55 100 31

BS2-2212-2CS/VT143 60 110 34

BS2-2213-2CS/VT143 65 120 38

BS2-2214-2CS/VT143 70 125 38

BS2-2215-2CS/VT143 75 130 38

BS2-2216-2CS/VT143 80 140 40

BS2-2217-2CS/VT143 85 150 44

BS2-2218-2CS/VT143 90 160 48

BS2-2219-2CS/VT143 95 170 51

BS2-2220-2CS/VT143 100 180 55

BS2-2222-2CS/VT143 110 200 63

BS2-2224-2CS/VT143 120 215 69

BS2-2226-2CS/VT143 130 230 75

BS2-2308-2CS/VT143 40 90 38

BS2-2309-2CS/VT143 45 100 42

BS2-2310-2CS/VT143 50 110 45

BS2-2311-2CS/VT143 55 120 49

BS2-2312-2CS/VT143 60 130 53

BS2-2313-2CS/VT143 65 140 53

BS2-2314-2CS/VT143 70 150 60

BS2-2315-2CS/VT143 75 160 64

BS2-2316-2CS/VT143 80 170 67

SB22204W33SS 20 47 18

SB22205W33SS 25 52 18

SB22206W33SS 30 62 20

SB22207W33SS 35 72 23

SB22208W33SS 40 80 23

SB22209W33SS 45 85 23

SB22210W33SS 50 90 23

SB22211W33SS 55 100 25

SB22212W33SS 60 110 28

SB22213W33SS 65 120 31

SB22214W33SS 70 125 31

SB22215W33SS 75 130 31

SB22216W33SS 80 140 33

SB22217W33SS 85 150 36

SB22218W33SS 90 160 40

SB22219W33SS 95 170 43

SB22220W33SS 100 180 46

SB22222W33SS 110 200 53

SB22224W33SS 120 215 58

SB22226W33SS 130 230 64

SB22228W33SS 140 250 68

SB22308W33SS 40 90 30

SB22309W33SS 45 100 36

SB22310W33SS 50 110 40

SB22311W33SS 55 120 43

SB22312W33SS 60 130 46

SB22313W33SS 65 140 48

SB22314W33SS 70 150 51







FAQ

Q1: Are you a trading company or a manufacturer?

A1: We are a manufacturer.

Q2: How long is your delivery time?

A2: Generally it is 15-20 days, if the goods are in stock, it is 3-7 days, if the goods are not in stock, it depends on the quantity.

Q3: Do you provide samples? Is it free or extra?

A3: Yes, we can provide samples for free, but we don't pay shipping fee.

Q4. How do you control the quality,and what if there is quality problem?

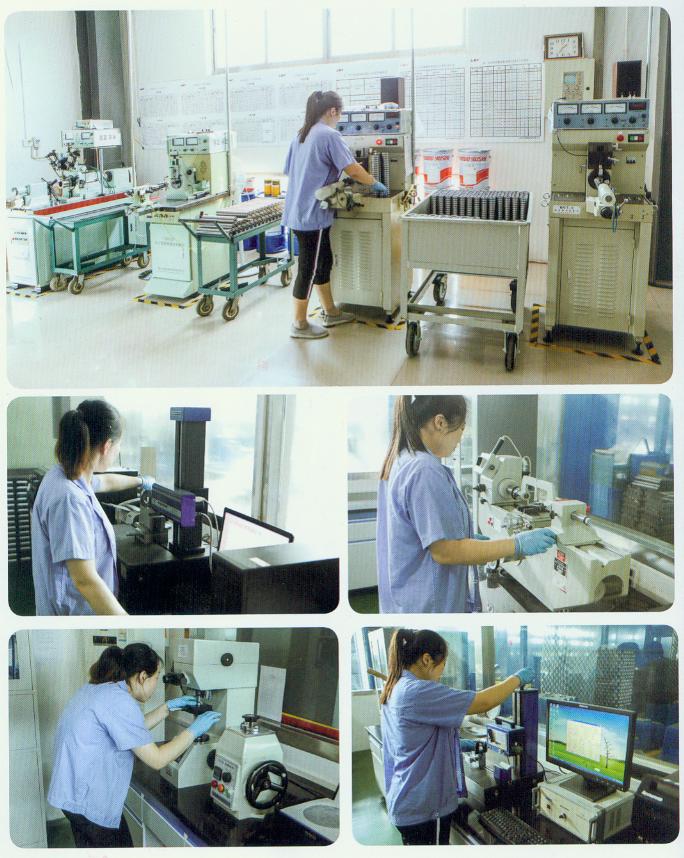

A4: All bearings will be 100% strictly inspected before shipment, including hardness, size, noise, speed, vibration and accuracy. If there is any quality problem, we will replace all faulty products with our shipping cost or refund to you.

Q5:OEM and customized can you accept?

A5: Yes, OEM is accepted, also can be customized for you according to samples or drawings

Q6: What are your shipping conditions.

A6: We can arrange shipping by sea to your nearest seaport or deliver to your doorstep. Air freight is also possible. We can help with all import formalities. It takes about 25-40 days by sea and 3-7 days by air.
